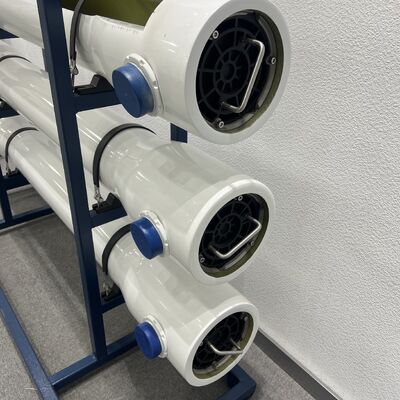

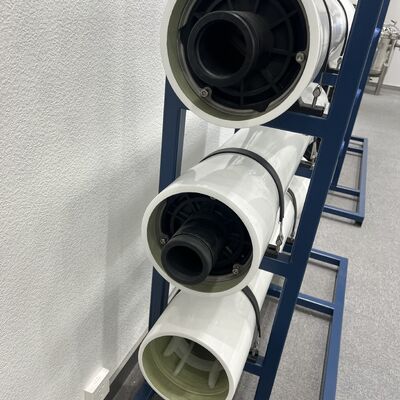

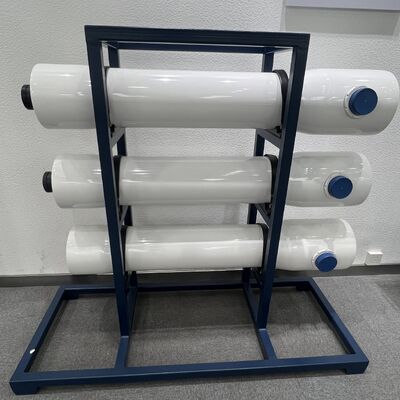

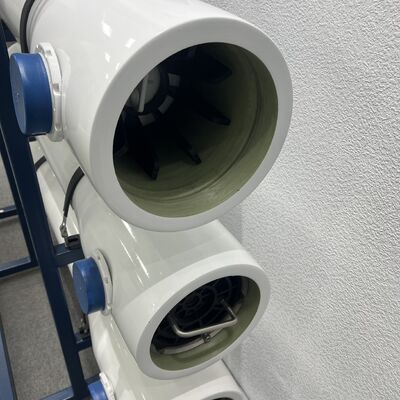

The P-FRP150 series FRP filter housing is especially suitable for the filtration of corrosive liquids such as seawater desalination, which effectively solves the problems of corrosion, leakage and degumming of traditional filters. The filter housing adopts a single filter cartridge design, which can be freely combined with ultrafiltration and reverse osmosis systems and can also be set into several filter units according to the site environment, which has strong adaptability to the site environment. HRP Series Horizontal Single FRP High Flow Cartridge Housing with good corrosion resistance, it can be widely used in the area which stainless steel and carbon steel housing can not be used. The flow rate of high flow cartridge is much higher than traditional filter cartridge.
| Filter Housing | FRP |
| Water Intake | FRP |
| Saddle | Rubber |
| Strapping | Stainless Steel/Rubber/Brass |
| Strap Bolt | Stainless Steel |
| Sealing | EPDM/Silicone/Fluorine Rubber |
| Design Pressure | 0.6MPa / 1.0MPa |
| Operating Temperature | -10℃~65℃ |
| Filter Cartridge Number | 1 |
| Filter Cartridge Length | 1028mm/1540mm |
| Filter Cartridge Diameter | 152mm |
| Liquid Flow Direction | Inside to Outside (Internal Pressure Type) |
| Design Flow | 35m³/h |
| Code | Filter Number | Filter Length | Inlet / Outlet Connection | Sealing Material | Design Pressure |
|---|---|---|---|---|---|
| P-FRP150 | 01 (1 Round) | 20 (20") | K65 (DN65) | S (Silicone) | Z (0.6MPa) |
| 40 (40 ") | K80 (DN80) | E (EPDM) | O (1.0MPa) | ||
| 60 (60 ") | K100 (100) | V (FKM) | C (Customize) | ||
| T (PTFE) |
