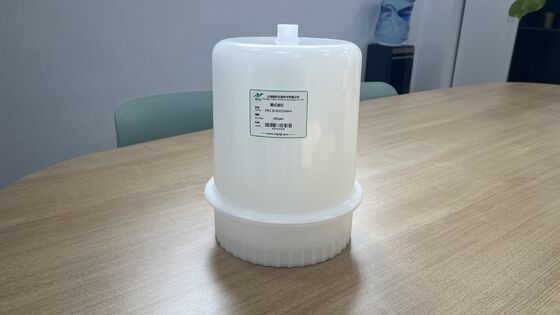

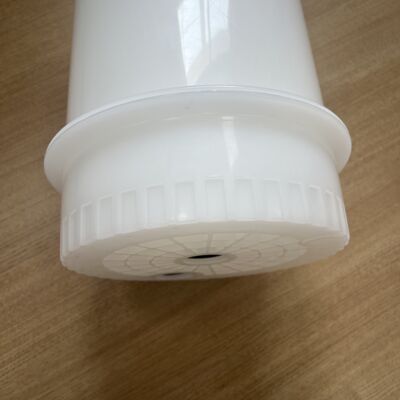

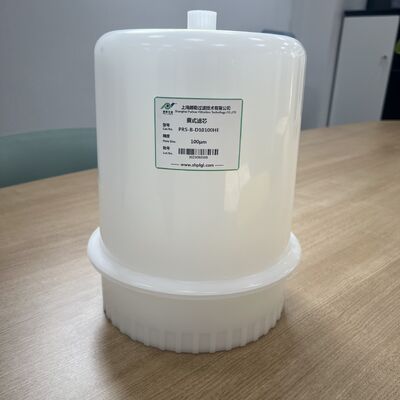

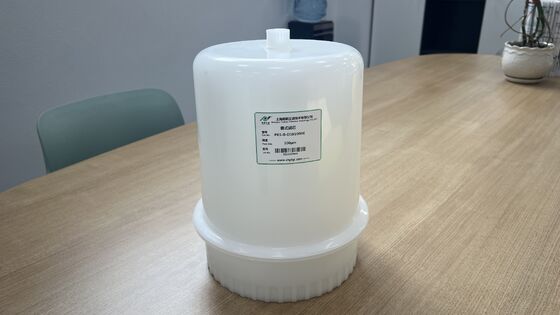

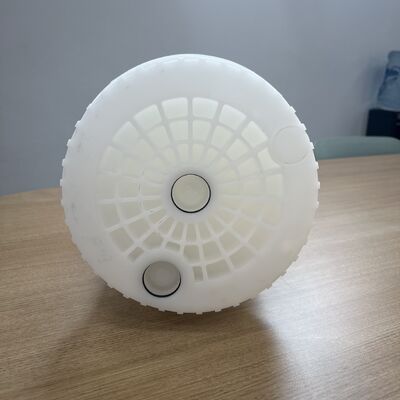

The PRS series integrated filter cartridge is engineered for ultra-high flow applications, making it ideal for high-speed coating production lines. This advanced design incorporates seven wound filter cores that significantly extend service life and reduce replacement frequency, meeting the rigorous demands of high-speed coating processes. The bottom features a specialized drain outlet for efficient liquid recovery and reuse.
| Product Model | PRS |
|---|---|
| Filter Cartridge Length | 10 inches, 20 inches |
| Outer Diameter | 250mm |
| Enclosure Material | PP |
| Filter Material | PP |
| Exhaust valve thread model | 1/4" NPT |
| Design pressure | 0.8Mpa |
| Maximum working pressure differential | 0.4Mpa@20℃ |
| Highest working temperature | 80℃ |
| Series | Length | Micron | Sealing Ring Material |
|---|---|---|---|
| PRS | 10=10" 20=20" |
1000=10μm | E=EPDM |
| 1500=15μm | |||
| 3000=30μm | |||
| 5000=50μm | |||
| 7500=75μm | |||
| 100H=100μm | |||
| 120H=120μm | |||
| 150H=150μm | |||
| 200H=200μm | |||
| 250H=250μm | |||
| 300H=300μm |
